Shopping for a 6 seater golf cart and unsure if it will fit your garage, trailer, or community gate? You’re not alone. Many buyers overlook critical measurements and end up with a cart that’s too long for their carport or too wide for their driveway. Knowing the exact 6 seater golf cart dimensions before purchase saves you time, money, and frustration.
These larger carts are common in retirement communities, resorts, golf courses, and large properties where group transportation matters. They offer more seating than standard 2 to 4 seaters but require extra space. In this guide, you’ll learn standard length, width, height, and clearance specs, how configurations affect size, and what to measure before buying or storing your cart.
Standard Size Range for 6 Seater Golf Carts
Most 6 seater golf carts share similar dimensional footprints designed to balance passenger capacity with everyday maneuverability.
Average Length: 130 to 150 Inches
A typical 6 passenger golf cart measures between 130 and 150 inches (10.8 to 12.5 feet) long. The extra two seats require an extended frame compared to 4-seaters, which usually average 115 to 125 inches. Carts with rear-facing seats or lounge-style configurations may stretch toward the upper end of this range. Always confirm exact length if you plan to back the cart into a garage or load it on a trailer.
Typical Width: 48 to 60 Inches
Width ranges from 48 to 60 inches, with most models falling around 50 to 52 inches. This sizing allows passage through standard gates and residential driveways. However, lifted carts, side enclosures, or aftermarket mirrors can increase the effective width. For tight pathways or narrow community roads, look for models under 52 inches wide.
Usual Height: 60 to 72 Inches
Height varies based on roof type. Standard models sit at 60 to 65 inches (5 to 5.4 feet), while carts with high canopies or full enclosures can reach 72 inches (6 feet). Measure your vertical clearance for garages, carports, and automatic gates before buying. Some models offer foldable roofs that reduce stored height.
Ground Clearance: 4 to 6 Inches
Most 6 seaters provide 4 to 6 inches of ground clearance, which works well for paved paths and packed gravel surfaces. Off-road or lifted versions may exceed 7 inches. Higher clearance improves terrain handling but can affect stability on steep slopes.
Seating Configurations That Affect Cart Size
How you arrange the seats directly influences the cart’s total length and interior space.
Forward-Facing vs. Rear-Facing Rows
Some 6 seaters use three forward-facing rows, which slightly increases overall length. Others use a 2-2-2 layout with alternating seat directions, which can optimize legroom without stretching the frame. Rear-facing seats make conversation easier but can create ingress and egress challenges on sloped surfaces.
Bench vs. Bucket Seats
Bench seating is common and space-efficient, allowing a tighter fit within the same frame. Bucket seats take up more width but offer individual comfort and adjustability. Luxury models often feature captain’s chairs, which can increase total width by 2 to 4 inches.
Foldable or Removable Rear Seats
Certain models include foldable rear seats that let you switch between 4 and 6 passenger modes. This flexibility reduces effective length when seats aren’t in use, improving storage options and tightening the turning radius.
Gas vs. Electric: How Power Type Affects Dimensions
Both gas and electric models serve 6 passenger needs, but their internal layouts create different dimensional profiles.
Gas Models Need Extra Engine Space
Gas-powered 6 seaters often require 1 to 3 extra inches of length to accommodate the engine compartment. Fuel tanks and exhaust systems also influence the undercarriage layout. These carts may weigh up to 1,500 lbs, which means you’ll need a stronger trailer for transport.
Electric Models Have Heavier Battery Packs
Electric carts feature smaller motors but carry 6 to 8 heavy batteries, typically placed under the seats or in a floor tray. This adds 1,200 to 1,400 lbs of total weight and raises floor height slightly. Battery access doors may protrude, adding to width or length in some designs.
Weight Affects Transport Requirements
Total weight determines your trailer needs. Always check the GVWR (Gross Vehicle Weight Rating) before towing. A fully loaded 6 seater can exceed 1,500 lbs, requiring a trailer rated for at least 2,000 lbs.
Roof and Enclosure Options
Roof and enclosure add-ons change both appearance and overall cart dimensions.
Standard Canopy vs. High-Top Roof
A standard canopy adds minimal height, keeping the cart under 65 inches. High-top roofs, popular for headroom and standing comfort, can raise total height to 70+ inches. Confirm overhead clearance if you plan to store the cart indoors.

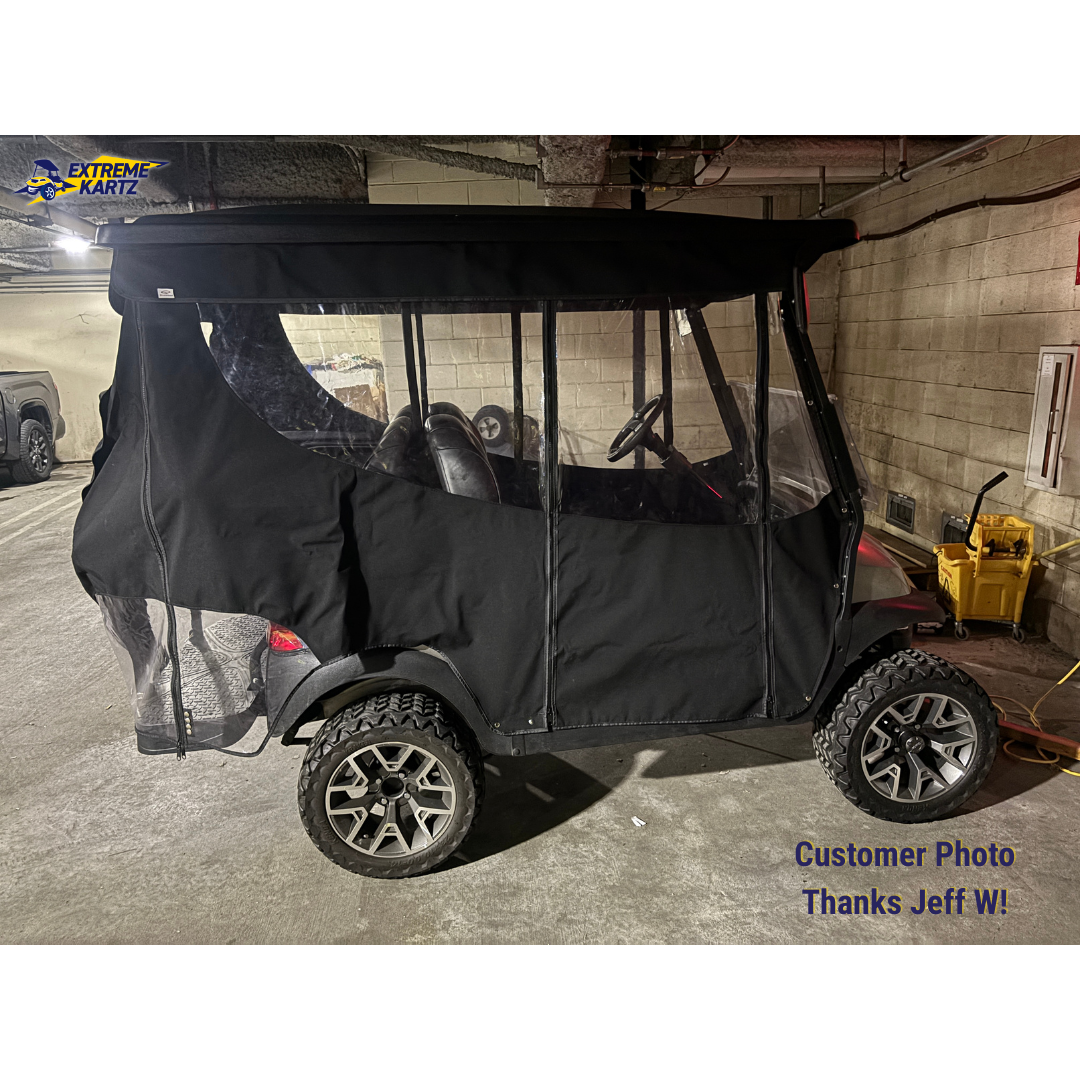

Full Windshields and Doors
Enclosures with roll-up windows or removable doors add 1 to 3 inches to width and affect aerodynamics. They work well in colder climates but require more storage space.
Removable Panels for Custom Fit
Many modern carts feature modular roofs and doors. You can remove side panels to reduce width for tight spaces or transport, then reattach them later for daily use.
Turning Radius and Maneuverability
Static size isn’t the only factor—how the cart drives matters just as much.
Average Turning Radius: 10 to 14 Feet
Most 6 seaters have a turning radius between 10 and 14 feet, allowing U-turns on narrow community roads. Longer models may require more space, especially if the wheelbase exceeds 80 inches.
Wheelbase Length: 75 to 85 Inches
The distance between axles affects both stability and turning performance. A longer wheelbase improves ride comfort but reduces agility. Measure tight corners in your community or property to ensure the cart can navigate them.
Curb-to-Curb vs. Wall-to-Wall Measurements
Curb-to-curb turning radius measures the inside front tire path. Wall-to-wall includes mirror width and gives a more realistic figure for tight garages. Always use wall-to-wall specs when available.
Storage and Garage Fit Tips
Getting the cart home is only half the challenge. You also need to store it properly.
Measure Twice Before You Buy
Use a tape measure to check garage door openings, interior depth, and ceiling height. Account for bumpers, mirrors, and roof antennas. Add at least 6 inches of clearance on all sides for safe entry and exit.
Ideal Garage Size: 14 by 8 Feet
A 14-foot-deep by 8-foot-wide garage comfortably fits most 6 seater carts. Shorter garages may require precise backing. Consider swing-up doors or foldable mirrors if space is tight.
Use Floor Markers for Parking Accuracy
Place floor markers or install parking guides to help drivers align the cart properly. Misaligned parking can damage walls, doors, and accessories, especially in narrow spaces.
Trailering and Transport Guidelines
Moving a 6 seater requires planning around both size and weight.
Choose the Right Trailer Size
Use a trailer at least 16 feet long and 6 feet wide to accommodate most 6 passenger carts. Aluminum trailers rated for 2,000+ lbs are ideal for repeated transport. Ensure tie-down points align with the cart’s frame.
Loading Ramp Angle Matters
A steep ramp can scrape the front bumper. Keep the loading angle under 30 degrees. Use wheel chocks and secure all four corners with ratchet straps before towing.
Check Local Transport Laws
Some regions require lights, license plates, or permits when hauling carts on public roads. Cover the cart during transport to protect upholstery from sun and road debris.
Brand Comparison: Popular 6 Seater Models
Top manufacturers offer different sizing and features across their lineups.
Club Car Carryall 6
- Length: 148 inches
- Width: 50 inches
- Height: 65 inches (standard roof)
- Weight: approximately 1,350 lbs
- Known for durability and commercial-grade construction
EZ-GO RXV 6-Passenger
- Length: 145 inches
- Width: 49 inches
- Height: 63 inches
- Weight: approximately 1,280 lbs
- Offers a smooth ride and works well in gated communities
Yamaha Drive2 6-Seater
- Length: 142 inches
- Width: 48 inches
- Height: 61 inches
- Weight: approximately 1,200 lbs
- Compact design with excellent fuel efficiency in gas models
Always verify exact specs with your dealer, since aftermarket modifications can change original dimensions.
Custom and Extended Models
Some 6 seaters go beyond standard sizing for specialized needs.
Stretch Carts: 155+ Inches Long
“Stretched” 6 seaters add luxury seating or cargo space, reaching 155 to 165 inches. These require larger trailers and wider turning space. They’re common in resorts and tour operations.
Lifted Carts: Higher Ground Clearance
Lift kits add 2 to 6 inches of height and wider tires, increasing total width. Some communities require permits for lifted carts due to the altered profile.
Cargo-Integrated Designs
Some 6 seaters include rear cargo beds, combining passenger and hauling capacity. These designs can extend length by 10 to 15 inches and reduce rear seat legroom.
Measuring for Gates and Pathways
Don’t overlook access points when planning your purchase.
Minimum Gate Width: 54 Inches
To comfortably pass through a gate, allow 6+ inches wider than the cart’s width. A 50-inch cart needs at least a 56-inch gate opening. Account for user error and slight wheel misalignment.
Pathway Curves and Obstacles
Tight corners, landscaping features, and mailbox posts can block wider carts. Test drive the model if possible, or use string and stakes to simulate the cart’s path through your property.
Overhead Branches and Wires
Check clearance along your entire route. Low branches can damage roofs and windshields. Trim problem areas or choose a lower-profile model if overhead clearance is limited.
Frequently Asked Questions About 6 Seater Golf Cart Dimensions
What is the average length of a 6 seater golf cart?
Most 6 seater golf carts measure between 130 and 150 inches long. Standard 4-seaters typically run 115 to 125 inches, so adding two seats adds roughly 10 to 25 inches depending on the seating configuration.
How wide is a typical 6 passenger golf cart?
The average width is 48 to 52 inches, though some models reach 60 inches with enclosures or lifted suspensions. Measure your gates and pathways to confirm fit before buying.
Will a 6 seater golf cart fit in a standard garage?
A standard 7 to 8 foot wide garage door usually accommodates most 6 seaters, but check the depth (14+ feet recommended) and ceiling height (at least 72 inches for high-top models). Always add 6 inches of clearance on all sides.
What size trailer do I need to haul a 6 seater golf cart?
Use a trailer at least 16 feet long and 6 feet wide, rated for 2,000+ lbs. Aluminum trailers resist rust and weigh less, making loading and towing easier.
How much does a 6 seater golf cart weigh?
Weights range from 1,200 to 1,500 lbs depending on power type and features. Electric models with battery packs typically fall in the middle, while gas models with engines sit at the higher end.
Do lifted 6 seater golf carts have different dimensions?
Yes, lift kits add 2 to 6 inches of height and often include wider tires that increase total width. Factor these changes into your garage, gate, and trailer measurements.
Key Takeaways for Choosing the Right 6 Seater Golf Cart
Understanding 6 seater golf cart dimensions ensures your new vehicle fits every space you need it to, from your garage to your neighborhood pathways. Standard models range from 130 to 150 inches long, 48 to 60 inches wide, and 60 to 72 inches tall, with variations based on brand, power type, and seating configuration.
Before you buy, measure your garage door, gate openings, and trailer space. Account for accessories like mirrors, windshields, and lift kits. Verify exact specs with the dealer, and test-fit your cart whenever possible. With the right measurements in hand, your 6 passenger cart will provide reliable, comfortable transportation for years to come.
